MXLR FlexBumper for Awesomatix A12 WC Edition

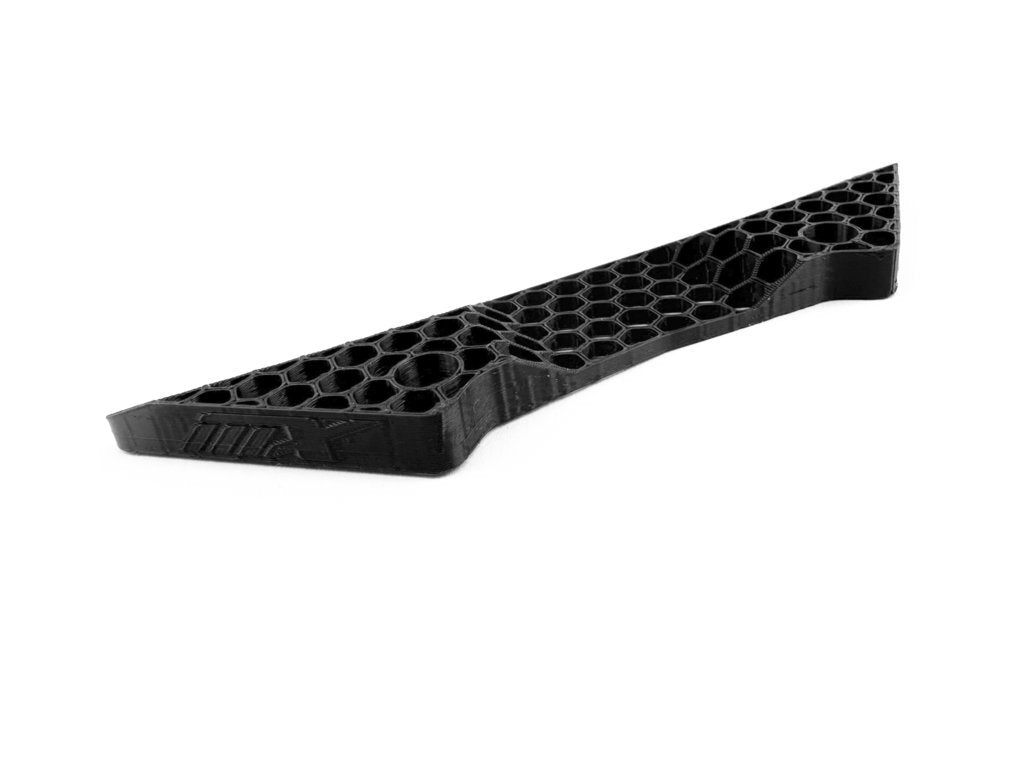

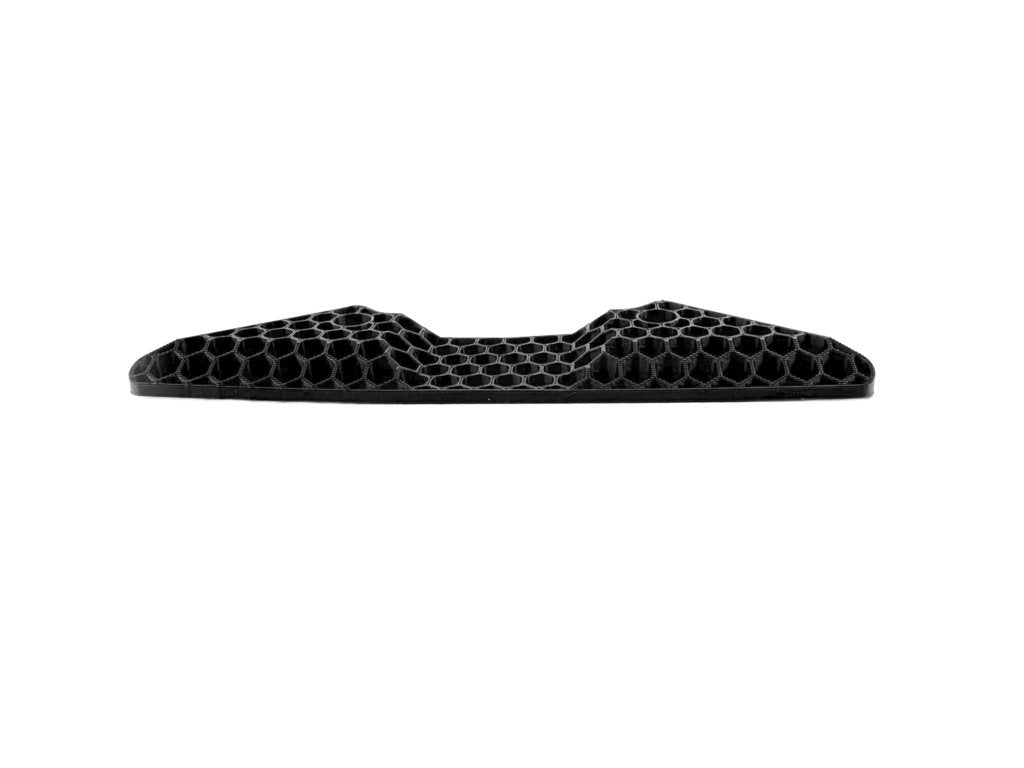

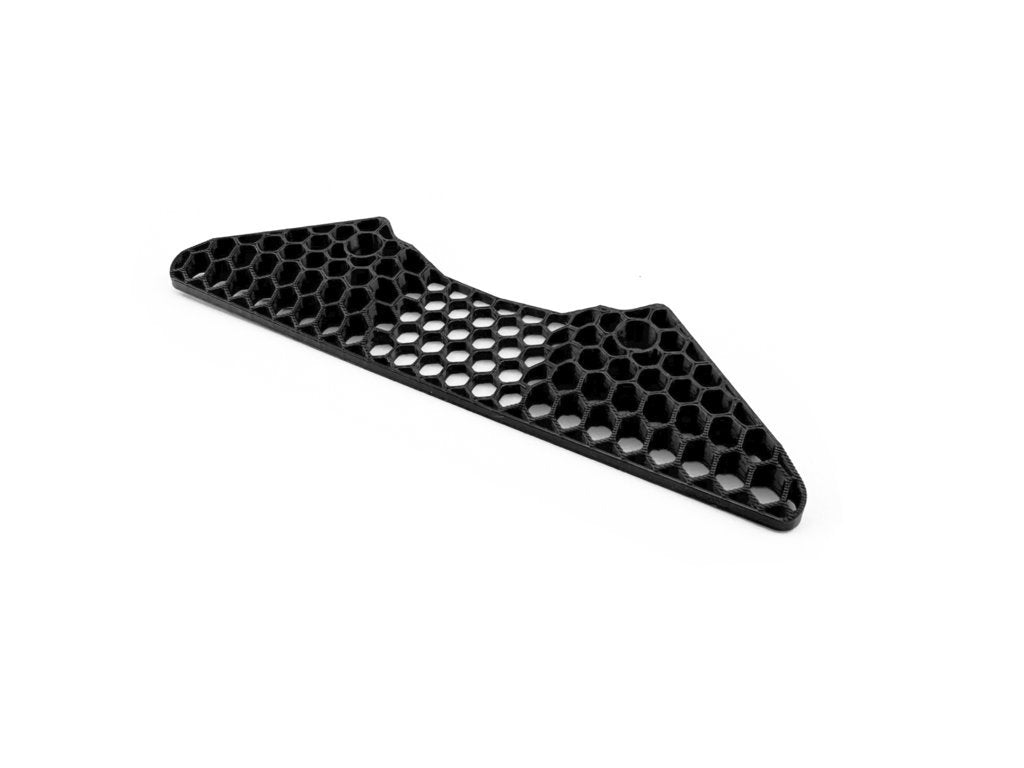

The WC Edition of our A12 FlexBumper is the final version of the test part that Max Mächler used in his IFMAR World Championship winning A12! With an increased width of 18mm and extended depth of 4mm we achieved a way better support for the bodyshells, which plays a key role when using the popular ultra light versions.

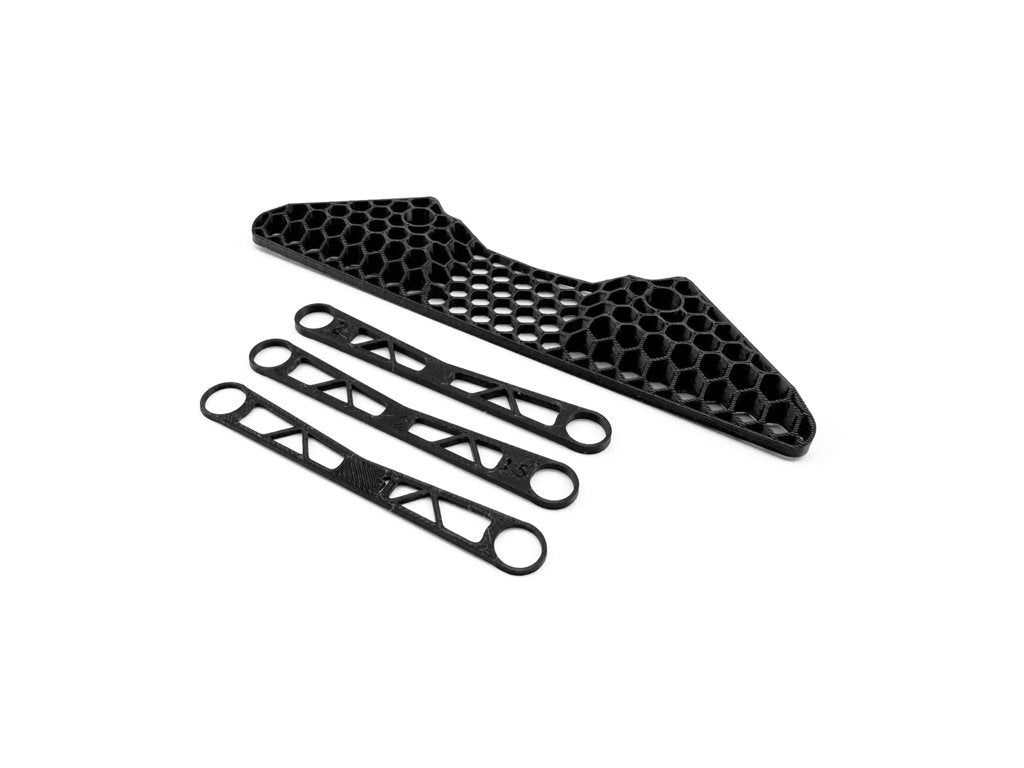

Actually this new style bumper takes over the role for the front body height adjustment , as the bodyshell rests completely on the bumper itself! With the three included spacers (1.0mm / 1.5mm / 2.0mm) it's rather easy to get the height setting perfect. Just place them under the bumper, directly on the Carbon Bumper plate of the A12!

At our tests in Europe and in the United States we found that these three different thickness spacer are suitable to get the correct bodyshell height settings by either using a single piece or stacking them up. We imprinted the thickness at different spots on each spacer to have a quick and easy count for the overall thickness when looking from above!

Weight comparison:

MXLR FlexBumper = ~5,0g.

Original Kit Bumper = ~3,5g.

Installation / Mounting tip:

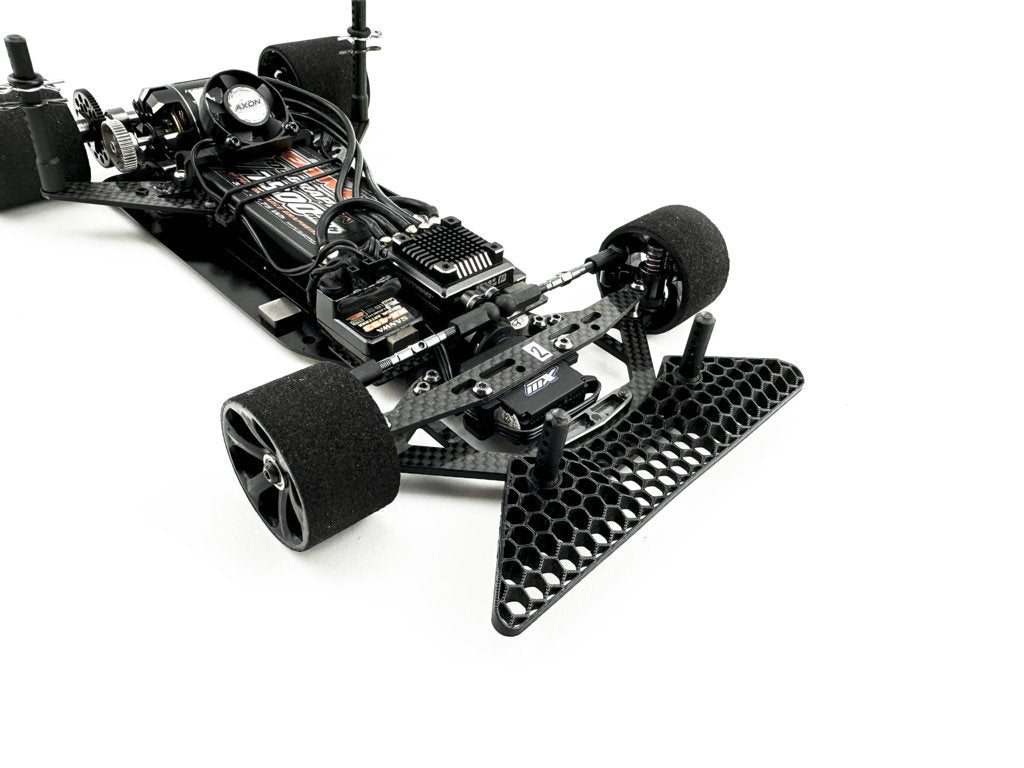

We recommend to remove the SH1.5mm alloy spacer between the C1205 Suspension plate and the C1204 Bumper plate. By this the Bumper plate will sit higher and is less prone for rubbing.

Use the different height printed spacers to adjust the FlexBumper height and by this the front bodyshell height.

SHIMS NOT INCLUDED with bumper, requires separate purchase.
SHIMS niet inclusief bumper, dienen los aangeschaft te worden.
